RVVY cable
Product application
The products have 3C certification can pass for the domestic market, the series of cable overall soft, workmanship is tight, especially for in industrial automation, mechanical and electrical equipment, machine tools, and other machinery and equipment, logistics transmission system, production line control system in electrical connection, suitable for industrial environment, dry or wet indoor and outdoor fixed installation, sheath with oil resistant PVC, the cable has good oil resistance.

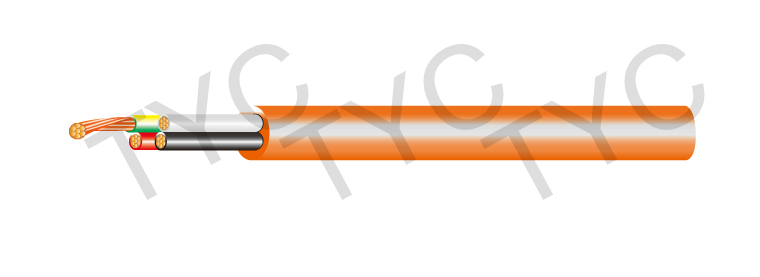

Product structure
Conductor: what a fine twisted into a bundle of bare copper wire
Insulation: high quality PVC insulation material
Core wire: wire stranding
Black core white with yellow wire digital code.
The color of the core line, with yellow wire
Black core of white yellow wire without a digital code.
The color of the core line, yellow wire without
Outer sheath: oil resistant PVC material
Jacket color: Black
Product characteristic
Working voltage: 300/500V
Test voltage: 2000V
Insulation resistance: 20M ohm /KM (20 C)
Fixed installation: about 6 * D (cable outside diameter)
Working temperature:
Fixed installation: -15 to +80
