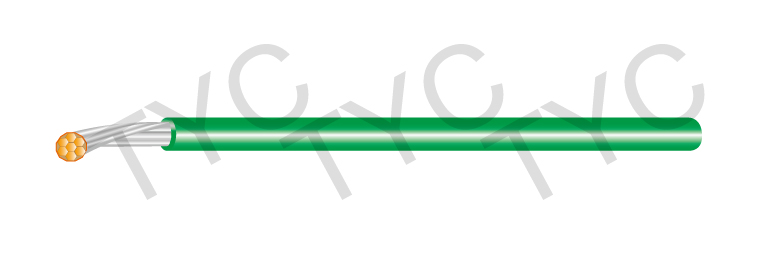

UL1015 cable
Product application
UL1015 single core cable with ULcUL authentication can be used for markets in North America and Europe, widely used in industrial equipment, electrical connection, including electrical cabinet, control room, connectors can also be for lighting, applicable to project wiring, better flexibility, easy installation, saving space.
Product structure
Conductor: what a fine twisted into a bundle of bare copper wire, conforms to the UL758 standard.
Insulation: high quality PVC material
Wire color: according to the RAL card or according to the standard
Outer jacket: no
Product characteristic
Working voltage: UL+Cul U0/U:450/750V U:600V
Test voltage: 3000V
Insulation resistance: 20M ohm /KM (20 C)
The minimum bending radius: the cross-sectional area is less than or equal to 6AWG: about 4 * D (cable)
Section area > 6AWG: about 8 * D (cable outside diameter)
Working temperature: fixed installation: -30 to +105
Flame retardant: accord with FT1, VVV-1
