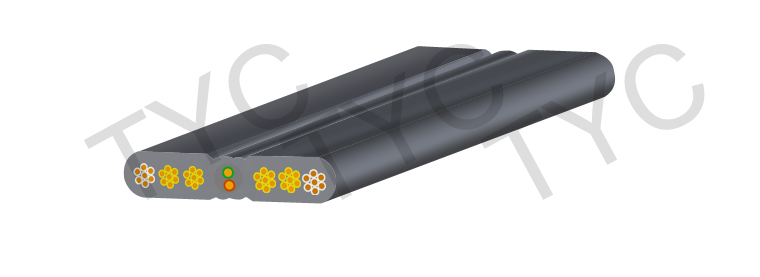

Traveling crane cable
Product application
The cable with special structure design, can be used as power and control cable is installed in driving, crane, logistics and other occasions.
Cable characteristic
The new type of oil - resistant and flexible special jacket can be kept soft and flame retardant at -15
Cable structure
Conductor: fine strands of copper wire
Insulation: special oil, flame retardant, mixed PVC insulation
Color: color representation
Black white number number (such as yellow greenground please)
Sheath: oil, flame retardant, flexible PVC special jacket or gray (RAL7001)
Black (RAL9005), must be described in advance when outdoor use.
Such as the use of the crane as follows:
When the cable is arranged in a font
1, the length of free use is greater than 35m
2, running speed is greater than 1.6m/s
Should first consider increasing the bearing components in the cable, the bearing components for soft galvanized wire rope or fiber rope such as aramid yarn etc.
The hoisting cable is quincunx twisting arrangement
1. The length of the free suspension is more than 80m
2, running speed of 10.0m/s to 4.0m/s
Stress components should be considered in the cable. The bearing components for soft galvanized wire rope
